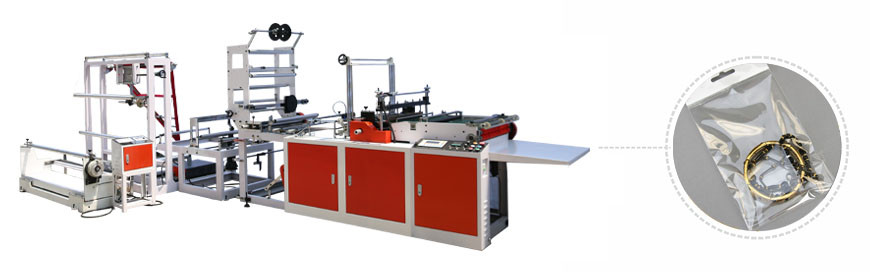

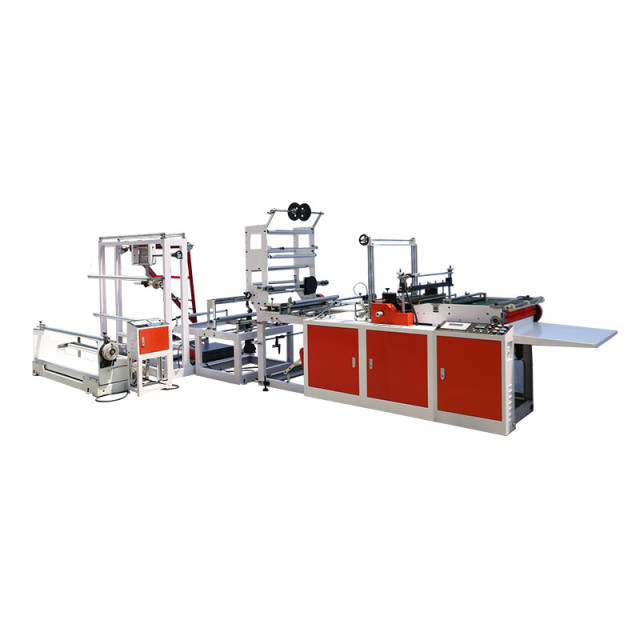

RQD+N Series -Multi-function Side Sealing Bag Making Machine
Features
1.This machine specialize to make PE、PP、OPP、PVC etc.side sealing bag.
2. Use servo motor feeding control, Main motor use Taiwan invertor control.
Conveying device use high quality conveyer belt&Taiwan invertor control
3.Heat sealing knife use High quality alloy steel.Heated to high temperatures
not easy deaformation.Sealing bar use thermostability silica gel material
4.It has E.P.C automatic control for unwinding.
5. Supporting function:1) Circular holes 2)Adhesive tape device 3)PE tube film Broken edge device.
Technical Parameter
|
Specification |
Model |
||||
|
RQD-400 |
RQD-600 |
RQD-700 |
RQD-800 |
RQD-1000 |
|
|
Max.Bag Width |
400mm |
600mm |
700mm |
800mm |
1000mm |
|
Max Bag Length |
30-600mm |
55-600mm |
55-700mm |
60-700mm |
65-800mm |
|
Machine speed |
30-180pcs/min |
30-140pcs/min |
30-140pcs/min |
30-130pcs/min |
30-130pcs/min |
|
Thickness of film |
0.02-0.20mm |
0.02-0.20mm |
0.02-0.20mm |
0.02-0.20mm |
0.02-0.20mm |
|
Tolerance |
±1mm |
±1mm |
±1mm |
±1mm |
±1mm |
|
Power Required |
3.0KW |
3.2KW |
3.4KW |
3.6KW |
3.8KW |
|
Machine size |
3100*1000*1420mm |
3100*1250*1420mm |
3100*1350*1420mm |
3100*1450*1420mm |
3100*1650*1420mm |
|
Machine N.W |
750kg |
950kg |
1050kg |
1150kg |
1250kg |
