Use Japan servo motors feeding control, Main motor and feeding motor use Taiwan invertor control. Italy photocells tracking.
Tel:+86-754-82124428 82124408 Email:sales@changchengmachinery.com
Features

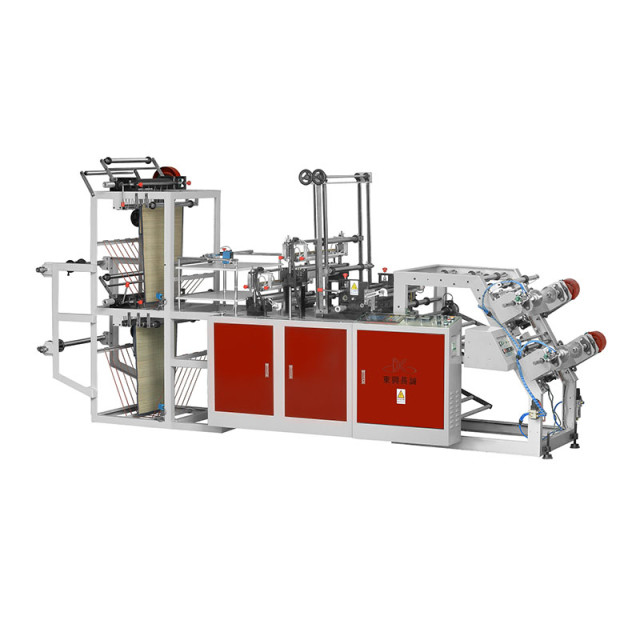

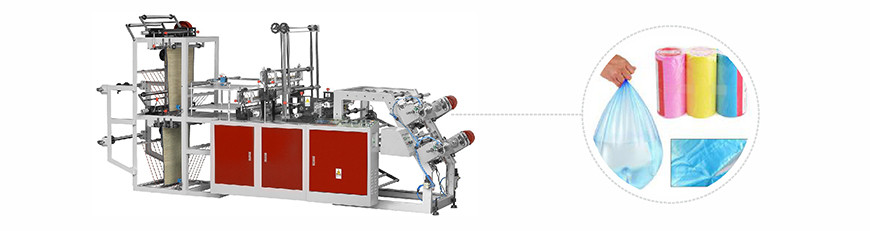

1.This machine specialize to make gerbage and freezer bag.
2.Use Japan servo motors feeding control, Main motor and feeding motor use Taiwan invertor control. Italy photocells tracking.
3.Bag on roll with core and coreless device.
4. Remove the rewinding device，change to cutting blade and making bottom sealing bag and T-shirt bag.Multi-function in one machine.
Technical Parameter
|
Specification |
Model |
|
FQ+R-500 |
|
|
Max.Bag Width |
500mm |
|
Max Bag Length |
10∼2000mm |
|
Machine speed |
30~150pcs/min |
|
Thickness of film |
0.008~0.04mm |
|
Tolerance |
±1mm |
|
Power Required |
3.2kw |
|
Machine size |
2800×1000×1420mm |
|
Machine N.W |
850kg |
